RJ45 PN plug Cat5, 4p IDC straight

  • RJ45 Ethernet­Data connector suitable for industry
  • Field­assembly with HARAX® quick termination in IDC technology
  • Compact design
  • Ergonomically unlocking clip
  • Less weight assures shock­ and vibration resisting connection
  • Category of transmission Cat. 6
  • Suitable for solid and stranded wires
  • Suitable for PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at)
Conductor cross-sectionAWG 22 ... AWG 27
Number of contacts8
Wire outer diameter1.6 mm (incl. insulation)
Limiting temperature-40 ... +70 °C
Mating cycles≥ 750
Degree of protection acc. to IEC 60529IP20
Cable diameter4.5 ... 9 mm (straight version) - 4.5 up to 8 mm (45° angled version)
Transmission characteristicsCategory 6, class EA, suitable for 1/10 Gigabit Ethernet
Transmission performanceCategory 6 / Class EA up to 500 MHz acc. to ISO/IEC 11 801:2002, EN 50 173­1
Flammability acc. to UL 94V-0
Transmission rate100 Mbit/s - 10 Gbit/s
Shieldingfully shielded, 360° shielding contact

Omschrijving

Bestelnummer

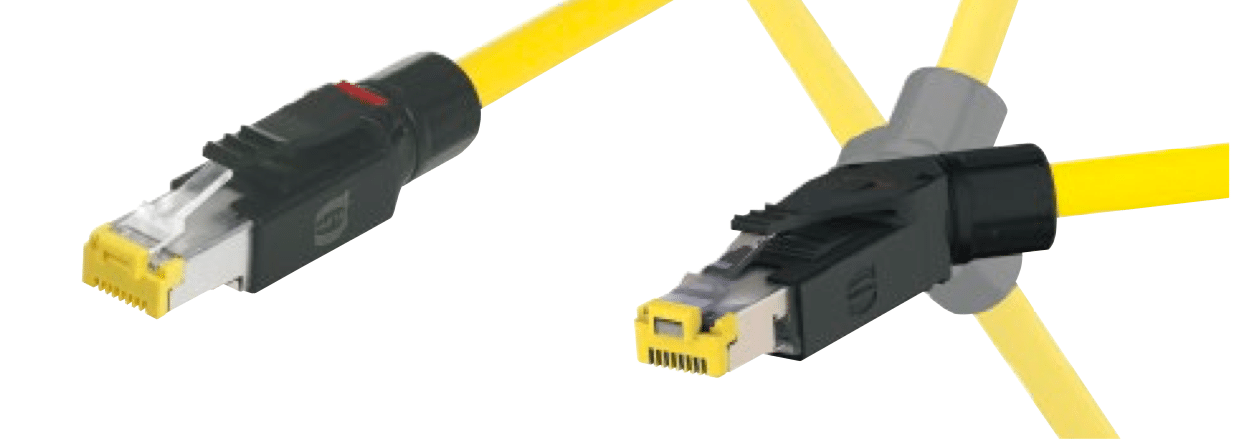

RJ Industrial® 10G connector set RJ45, 8­poles - straight version09 45 151 1560
RJ Industrial® 10G connector set RJ45, 48poles - 45° angled version (four different cable outlets possible)09 45 151 1561
