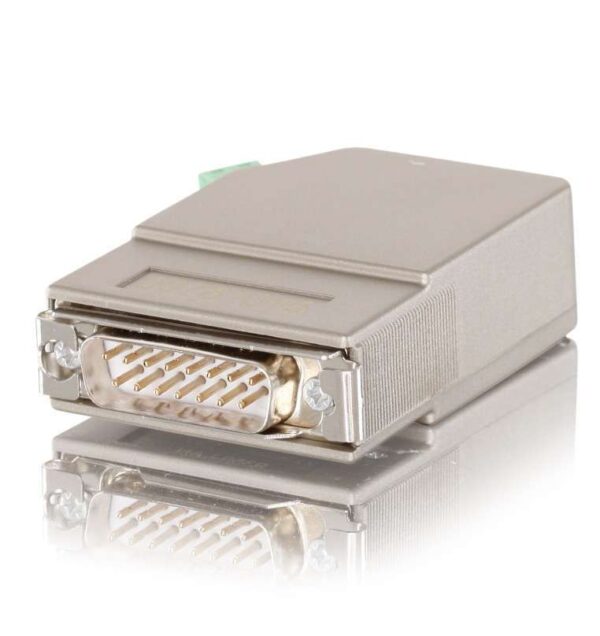

S5-LAN adapter

The S5-LAN is a connection adapter between a PC and a S5 PLC via TCP/IP. It is fed by the PLC’s interface, an external power supply is not necessary.

  • As programming adapter to create and change the PLC program
  • As communication adapter for visualizations
  • As communication adapter for accessing the PLC's data
  • Power supply from the CPU or external 24 V
  • Fits on any standard S5-CPU
Voltage supply24 V DC, 18–30 V DC
Current draw typical80 mA
S5 interface
ConnectionConnector, SUB-D, 15-pin
Communication interface
Transmission rate10/100 Mbps
ConnectionRJ45 socket



S5-LAN adapter11800H
vraag meer informatie over toepassingen aan via ons contactformulier.
