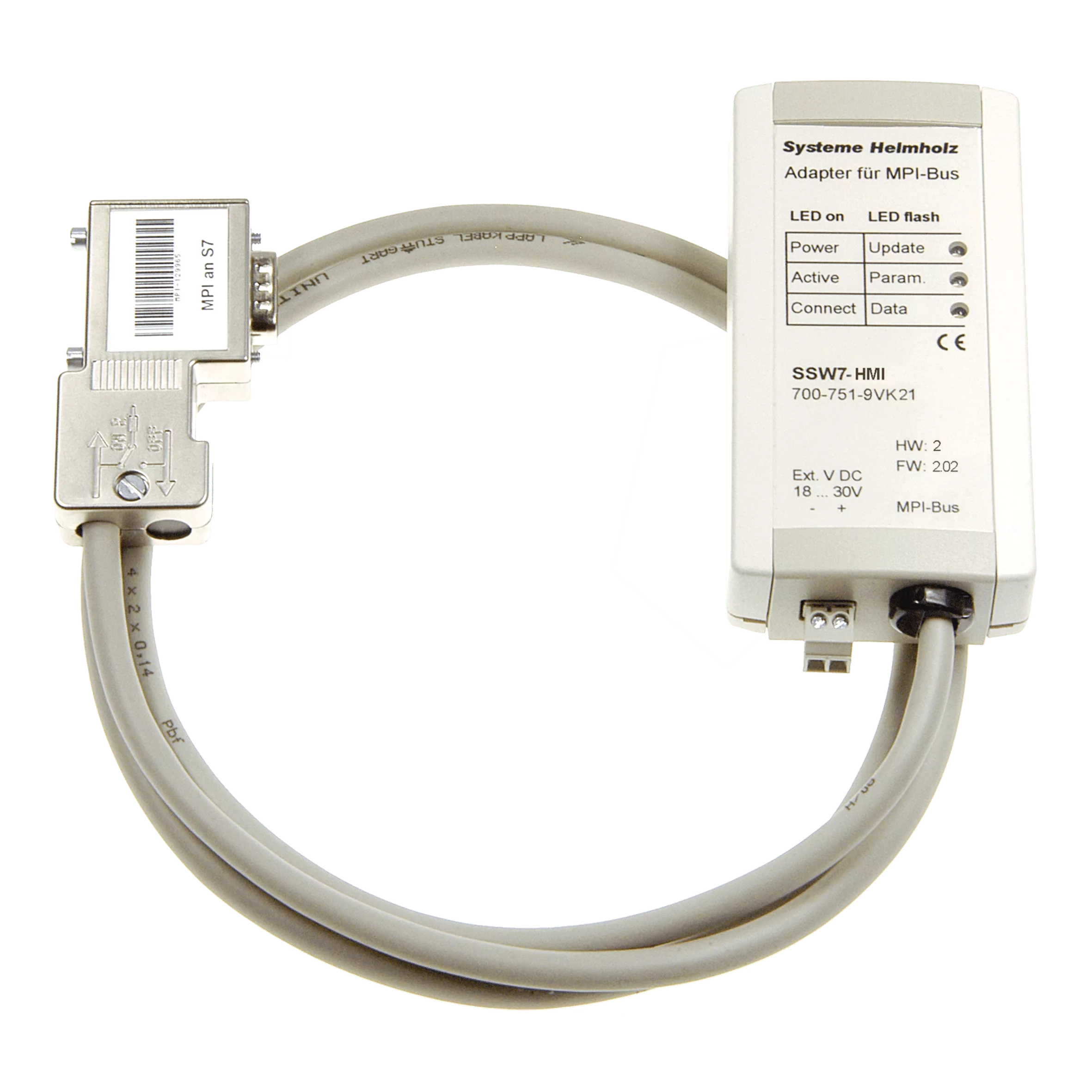

SSW7-HMI, MPI adapter with HMI protocol
Please contact us for up-to-date delivery information.
Contact UsThe transfer rate of the adapter is set by the protocol (from 4.8 to 115 kbps).
The SSW7-HMI is supplied with voltage via the MPI bus of the CPU. With an optional 24 V connection, it can be used anywhere else in the system.
We provide the SSW7-HMI with an additional programming interface on the connector, including a switchable terminating resistor.
Parameterization and diagnostic functions are possible using the SHTools software.
For a firmware update, download the latest SHTools version for free.
| MPI interface | ||
| Type | RS485 | |
| Transmission rate | 187,5 kbps | |
| Connection | SUB-D, 9 pin with PG interface and terminating resistor | |
| Communication interface RS232 | ||
| Transmission rate | 4,8...115,2 kbit/s | |
| Protocol | HMI | |
| Connection | Connector, SUB-D, 9 pin |
Description |
Order number |
| SSW7-HMI, MPI adapter with HMI protocol | 700-751-9VK21 |
