TB20 AI, 16 Bit, R, RTD, 2/3/4 wire

Parameters for the module

  • Diagnostic alarm: On | Off
  • Overflow/underflow diagnosis: On | Off
  • Representation values: SIMATIC* S7 | SIMATIC* S5
  • Temperature unit: Celsius x 10 | Fahrenheit x 10 | Kelvin x 10



Parameters for each channel

  • Wire break detection: On | Off
  • Interference frequency suppression: None | 10 Hz | 50 Hz | 60 Hz | 400 Hz
  • Measuring ranges: 150 ohms / 300 ohms / 600 ohms / 3000 ohms / 6000 ohms / PT100 / PT1000 / Ni100 / Ni1000 / LGNi1000
  • Sensor type: Disabled | 2-wire | 3-wire (channel 0 only) | 4-wire (channel 0 only)
  • Limit value alarms enabled: On | Off
  • Upper/lower limit: 16 bit analog value (±27648)
  • Measuring ranges: 150 ohms, 300 ohms, 600 ohms, 3,000 ohms, 6,000 ohms, Pt100, Pt1000, Ni100, Ni1000, LG-Ni1000, individually configurable for each channel
  • Can accommodate 2/3/4-wire sensors
  • Measurement resolution: 15 bits + sign
  • Diagnostic messages
  • Wire break detection
  • Limit value alarms for each channel
  • A bi-color LED (blue/red) indicates the module operating status and any malfunctions
Electrical isolation
from the backplane busYes
Between the channelsNo
InternalMax.140mA
Power dissipation Max. 1 W
Measuring ranges150 ohms, 300 ohms, 600 ohms, 3000 ohms, 6000 ohms, PT100, PT1000, Ni100, Ni1000, LGNi1000
Measuring methodIntegration
Measurement resolution15 bits + sign
Interference frequency suppressionNone | 10 Hz | 50 Hz | 60 Hz | 400 Hz
efresh rate / conversion rateNumber of active channels x conversion time +16 ms for wire break detection for each channel when activated.
The conversion time will depend on the interference frequency suppression:
None: 8 ms
400 Hz: 45 ms
60 Hz: 109 ms
50 Hz: 128 ms
10 Hz: 342 ms
DiagnosesUpper measuring range limit exceeded (overflow), lower measuring range limit fallen below (underflow), wire break (for 1 ... 5 V only), parameter assignment error
Process alarms Upper and lower limit per channel
Error limits
Operational error limit in the entire temperature range±0.5 % relative to the nominal range
Basic error limit at 25 °C ±0.3 % relative to the nominal range
Temperature error±0.005 %/K relative to the nominal range
Linearity error ±0.05 %/K relative to the nominal range
Repeating accuracy in steady state at 25 °C±0.05 %/K relative to the nominal range
Parameter configuration length26 bytes
General error indicatorRed LED
Hot-swap capableYes

Omschrijving

Bestelnummer

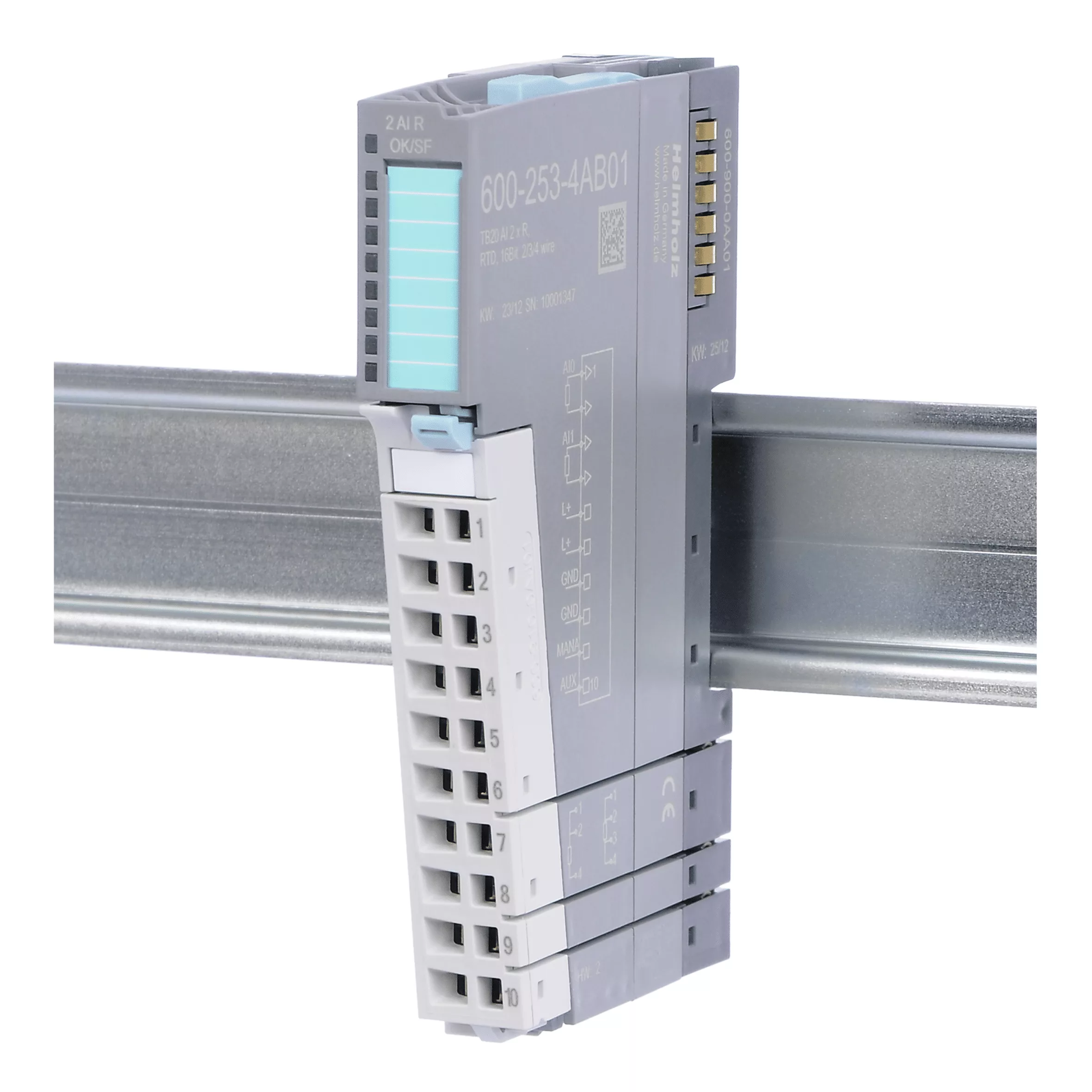

AI 1/2x R, RTD, 16 Bit, 2/3/4 wire600-253-4AB01
AI 2/4x R, RTD, 16 Bit, 2/3/4 wire600-253-4AD01
