TB20 AI, 16 Bit, TC, Iso.
TB20 AI, 16 Bit, TC, Iso.
Parameters for the module
- Diagnostic alarm: On | Off
- Overflow/underflow diagnosis: On | Off
- Representation values: SIMATIC* S7 | SIMATIC* S5 (for ?80 mV only)
- Temperature unit: Celsius x 10 | Fahrenheit x 10 | Kelvin x 10
Parameters for each channel
- Wire break detection: On | Off
- Interference frequency suppression: None | 10 Hz | 50 Hz | 60 Hz | 400 Hz
- Measuring ranges: ?80 mV
- Thermocouples: E | J | K | N | R | S | T | B | C | L
- Temperature compensation: Internal | External | Process data-based
- Limit value alarms enabled: On | Off
- Upper/lower limit: 16 bit analog value (?27648)
- Measuring range ±80 mV
- Supported thermocouples: E, J, K, N, R, S, T, B, C, L
- Measurement resolution: 15 bits + sign
- External or internal temperature compensation
- Wire break detection
- Diagnostic messages
- Limit value alarms for each channel
- A bi-color LED (blue/red) indicates the module operating status and any malfunctions
- Red/green bi-color LEDs (one for each channel) indicate the channel status
Vraag direct een offerte aan!
TB20 AI, 16 Bit, TC, Iso.
Electrical isolation | ||
from the backplane bus | Yes | |
Between the channels | Yes | |
Internal | Max.140mA | |
Power dissipation | Max. 1 W | |
Measuring ranges | ± 80 mV | |
Thermocouples | E (-270 °C … 990 °C) J (-210 °C ... 1200 °C) K (-270 °C … 1380 °C) N (-270 °C … 1320 °C) R (-50 °C … 1775 °C) S (-50 °C … 1775 °C) T (-270 °C … 405 °C) B (0 °C … 1800 °C) C (0 °C … 2320 °C) L (0 °C … 900 °C) | |
Measuring method | Integration | |
Measurement resolution | 15 bits + sign | |
Interference frequency suppression | None | 10 Hz | 50 Hz | 60 Hz | 400 Hz | |
Refresh rate / conversion rate | Depends on the interference frequency suppression setting being used: None: 3 ms 400 Hz: 8 ms 60 Hz: 51 ms 50 Hz: 60 ms 10 Hz: 160 ms | |
Diagnoses | Upper measuring range limit exceeded (overflow), lower measuring range limit fallen below (underflow), parameter assignment error | |
Process alarms | Upper and lower limit per channel | |
Error limits | ||
Operational error limit in the entire temperature range | ±0.5 % relative to the nominal range | |
Basic error limit at 25 °C | ±0.3 % relative to the nominal range | |
Temperature error | ±0.005 %/K relative to the nominal range | |
Linearity error | ±0.05 %/K relative to the nominal range | |
Repeating accuracy in steady state at 25 °C | ±0.05 %/K relative to the nominal range | |
Parameter configuration length | 51 bytes | |
General error indicator | Red LED | |
Hot-swap capable | Yes |
Omschrijving |
Bestelnummer |
AI 2x TC, Iso., 16 Bit | 600-254-4AB02 |

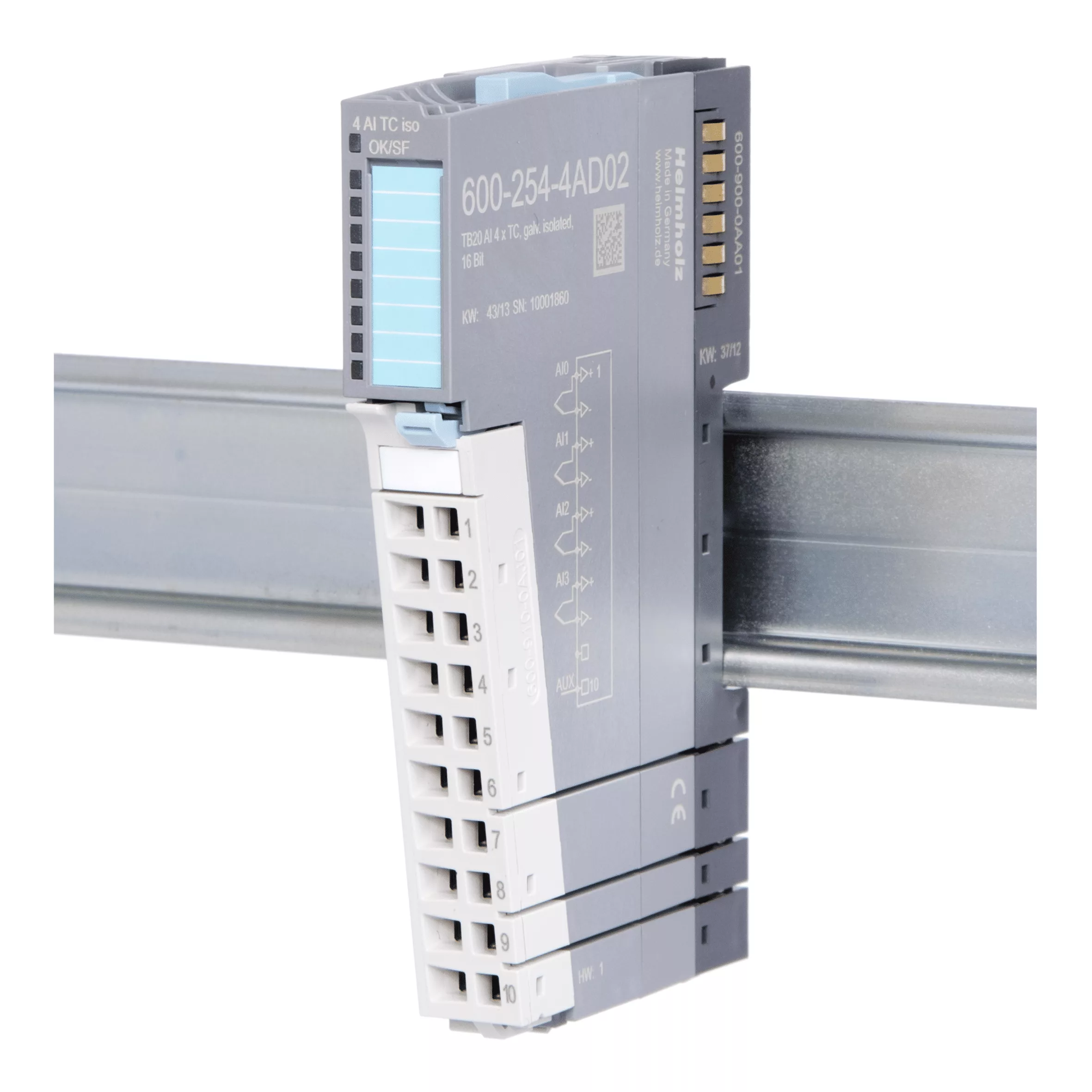

AI 4x TC, Iso., 16 Bit | 600-254-4AD02 |

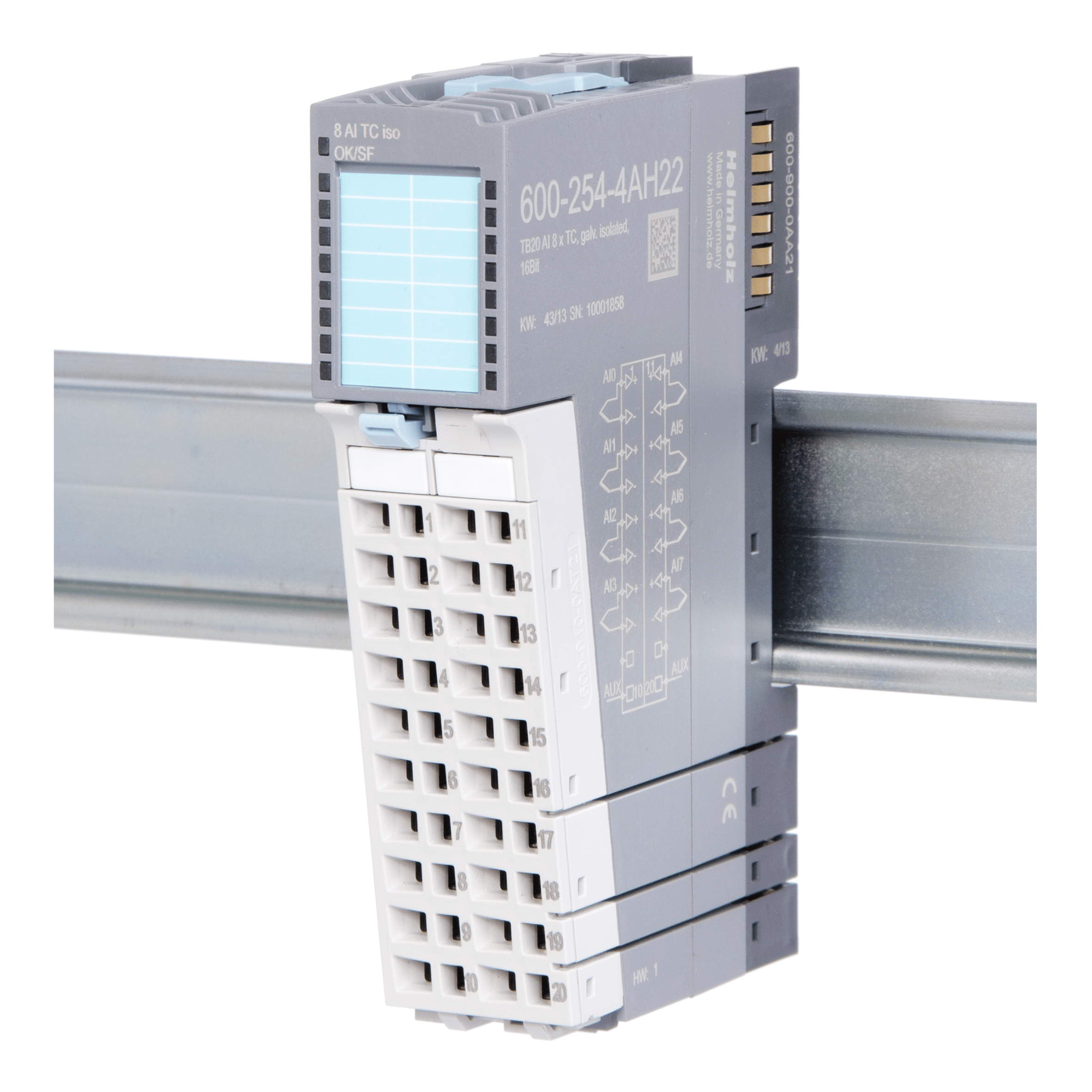

AI 8x TC, Iso., 16 Bit | 600-254-4AH22 |
