TB20 bus coupler, DeviceNet Slave

TB20 bus coupler, DeviceNet Slave

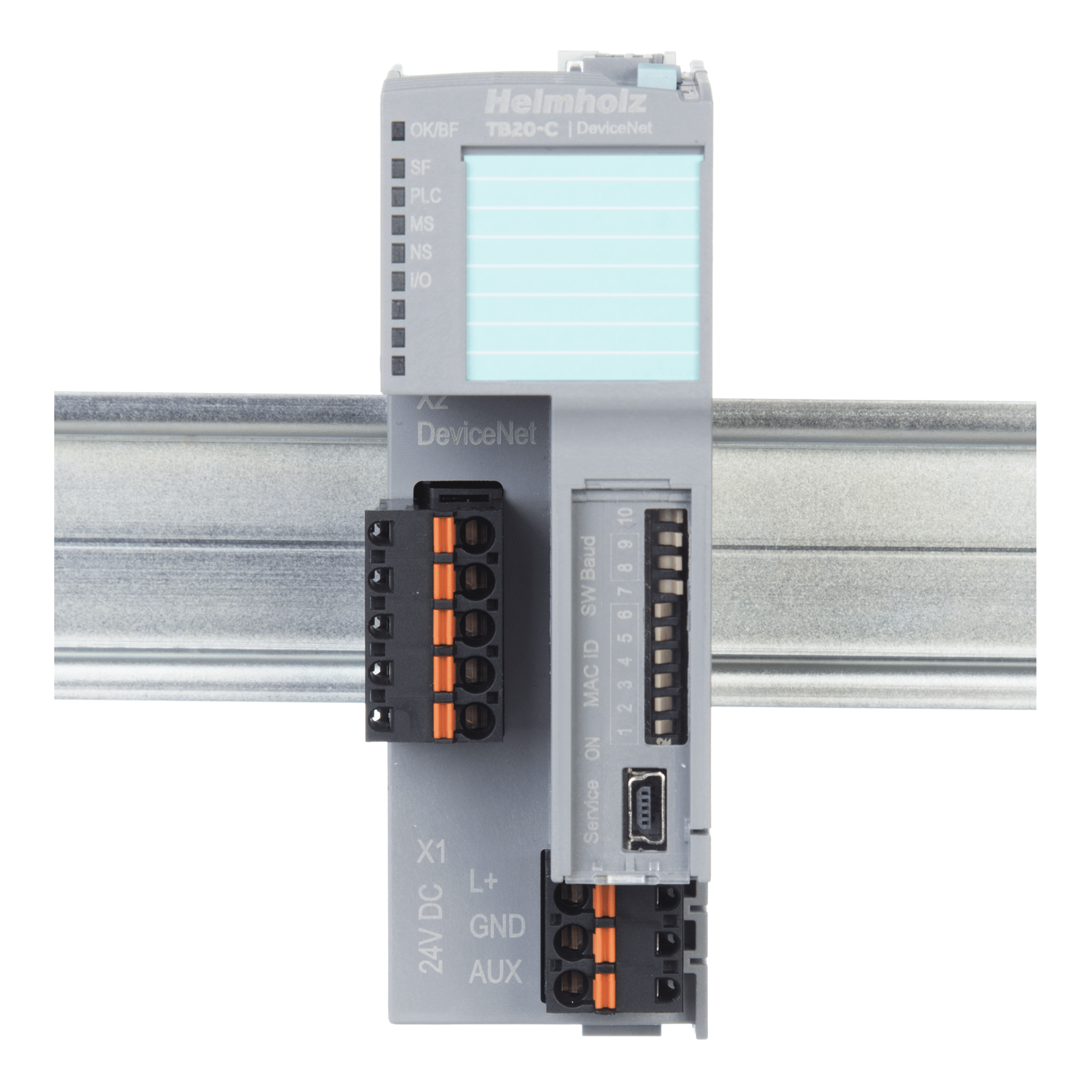

The DeviceNet Slave bus coupler connects the DeviceNet bus to peripheral modules. As a group 2 server, the coupler supports the ?Predefined Master/Slave Connection Set? in accordance with sections 3-6 of the ?CIP Networks Library Vol. 3.? In addition, the slave software, with the help of an ?Unconnected Message Manager? (UCMM), enables the dynamic setting up of multiple communications channels.
You can also choose from various combination possibilities for your I/O data and three kinds of DeviceNet connections: ?Polled-I/O?, ?Bit-Strobed-I/O,? and ?COS/Cyclic-I/O.? It is also equipped with a 2 kByte I/O data image table.
It recognizes all connected peripheral modules and assigns each module the inputs/outputs from the process image table.
Thanks to the TB20-ToolBox, it is easy to configure the system and the various module parameters and transfer them to the coupler.

A functioning TB20 configuration will always require a bus coupler and at least one peripheral module. The bus coupler supports hot-swapping for replacing modules during operation.

  • Modules can be replaced during operation (hot-swapping)
  • 24 V DC power supply
  • Integrated power supply unit for powering peripheral modules (2.5 A)
  • Supplies the system’s I/O voltage (24 VDC)
  • USB device port for online diagnostics, configuring parameters, setup, and firmware updates with "TB20 ToolBox"
  • TB20 ToolBox simulation for commissioning the I/O system without a higher-level controller in order to test the system's operation (I/O check)
  • Concealed "factory reset" switch for restoring the module to its factory settings
  • Group 2 server
  • UCMM-compatible
  • Polled, Bit-Strobe, COS/Cyclic connections
  • Supports Offline Connection Set, Device Heartbeat, and Device Shutdown messages
  • MAC ID and transfer rates can be set via software and hardware (DIP switch)
  • Supports 125, 250, and 500 kbps
  • 1024 bytes of input data / 1024 bytes of output data
  • 120 bytes of parameter data per module
  • Configuration with Rockwell RSNetWorx© possible using explicit messaging
  • Reading out of coupler status possible using explicit messaging
  • Offers an Open Style Connector
Dimensions (DxWxH)110 x 35 x 73 mm
WeightApprox. 115 g
DeviceNet Transmission rate125, 250, and 500 kbps
Voltage supply24 V DC, 18–30 V DC
Current drawMax. 250 mA with DC 24 V

Description

Order number

TB20 DeviceNet Coupler600-165-1AA11

Software

TB20-ToolBox V2 Setup Versie: V2.10.008
