TB20 DI, DC 24 V
Digital input modules for the modular fieldbus IO system TB20.
- 24 V DC input voltage
- Can accommodate 2-wire proximity sensors
- A blue LED indicates the module's operating status
- Green LEDs (one for each input) indicate the input status
- 2, 4, 8 or 16 inputs, electrically isolated from the backplane bus
| Electrical isolation | ||
| from the backplane bus | Yes | |
| Between the channels | No | |
| Current draw | ||
| External | Max. 0 mA | |
| Internal | Max. 22 mA | |
| Power dissipation | Max. 1.85 W | |
| Input characteristic curve | Type 2, EN 61131-2 | |
| Reverse polarity protection for inputs | Yes | |
| Input voltage | ||
| For signal "0” | -3 V … 9 V | |
| For signal "1” | 12 V … 30 V |
Description |
Order number |

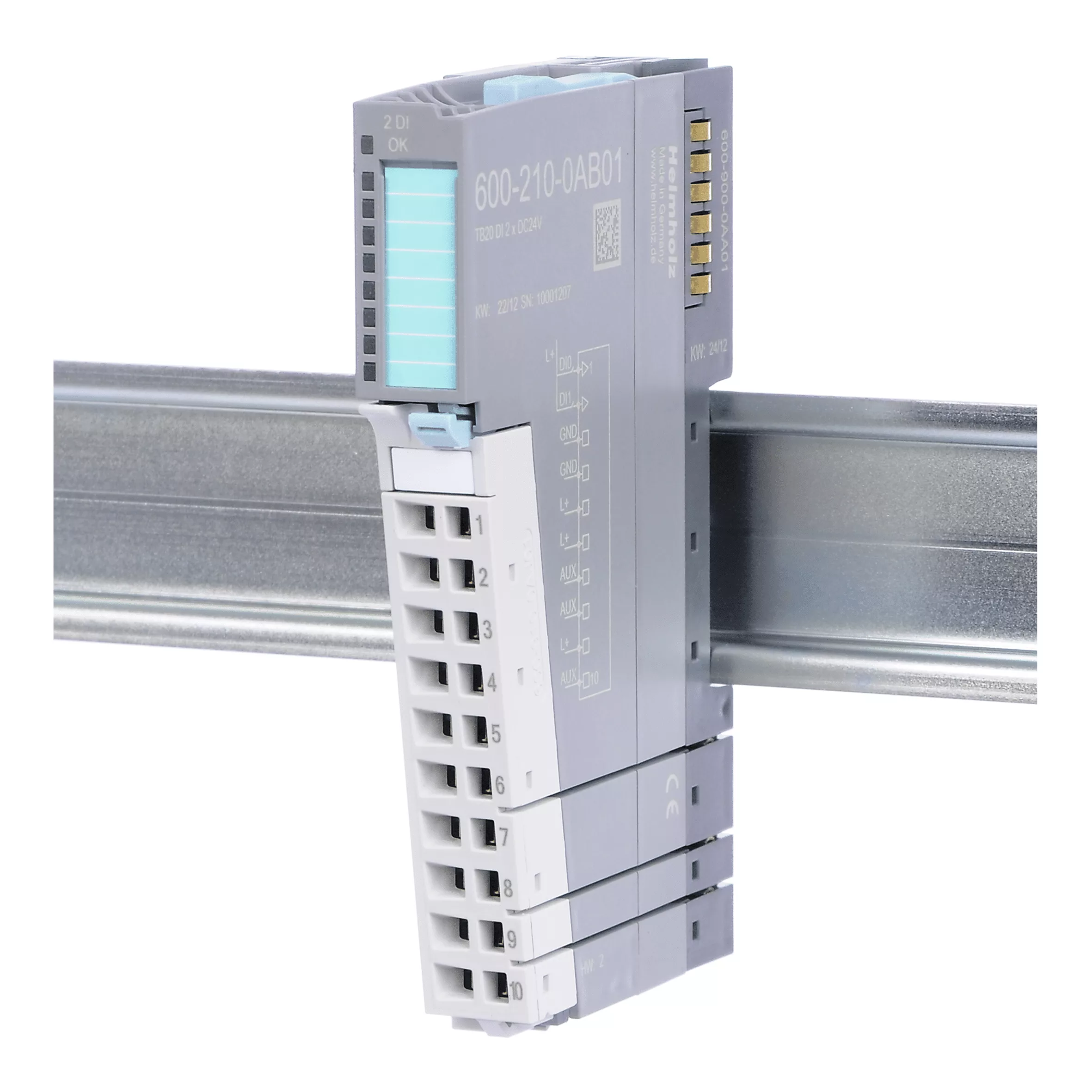

| DI 2x DC 24 V | 600-210-0AB01 |
| DI 4x DC 24 V | 600-210-0AD01 |

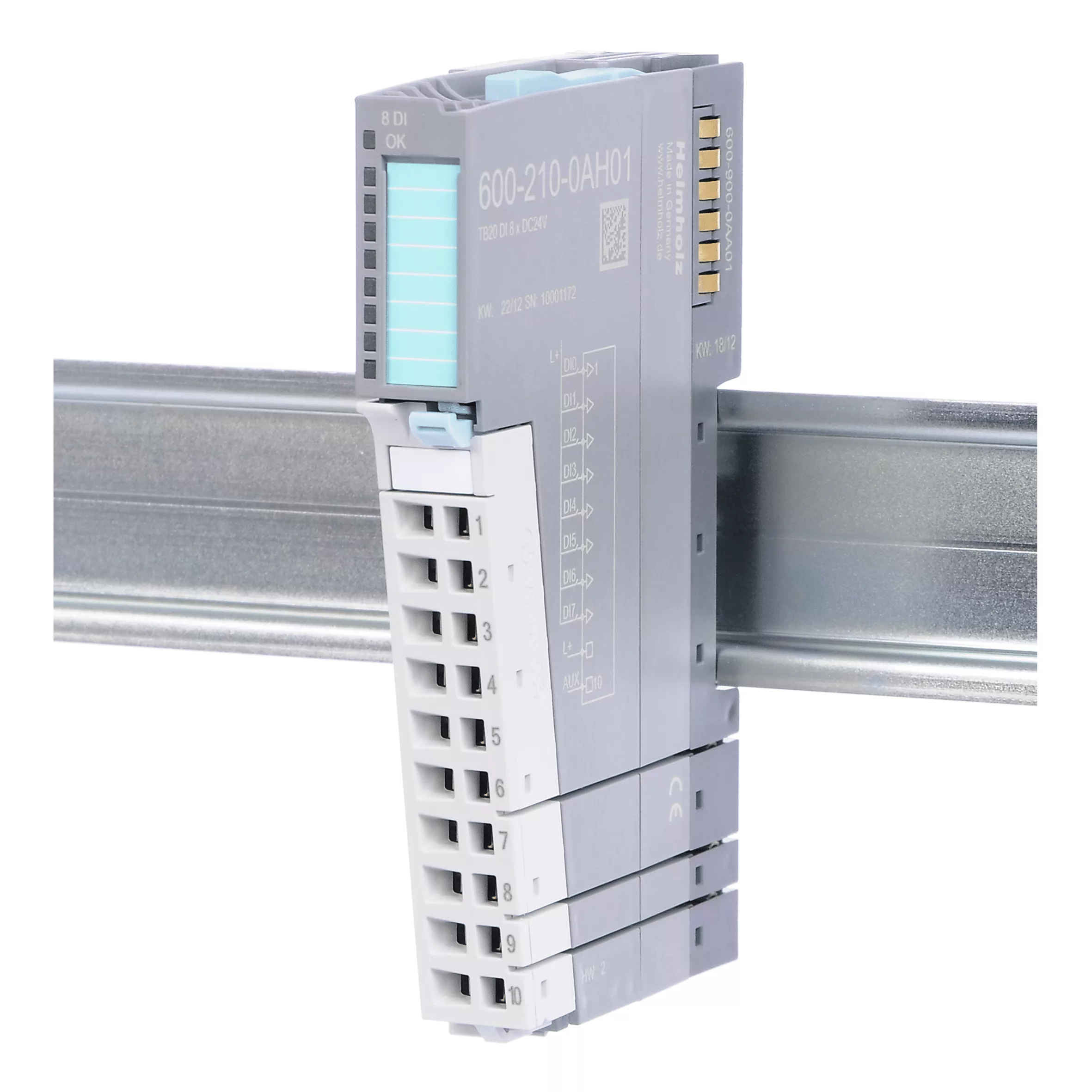

| DI 8x DC 24 V | 600-210-0AH01 |

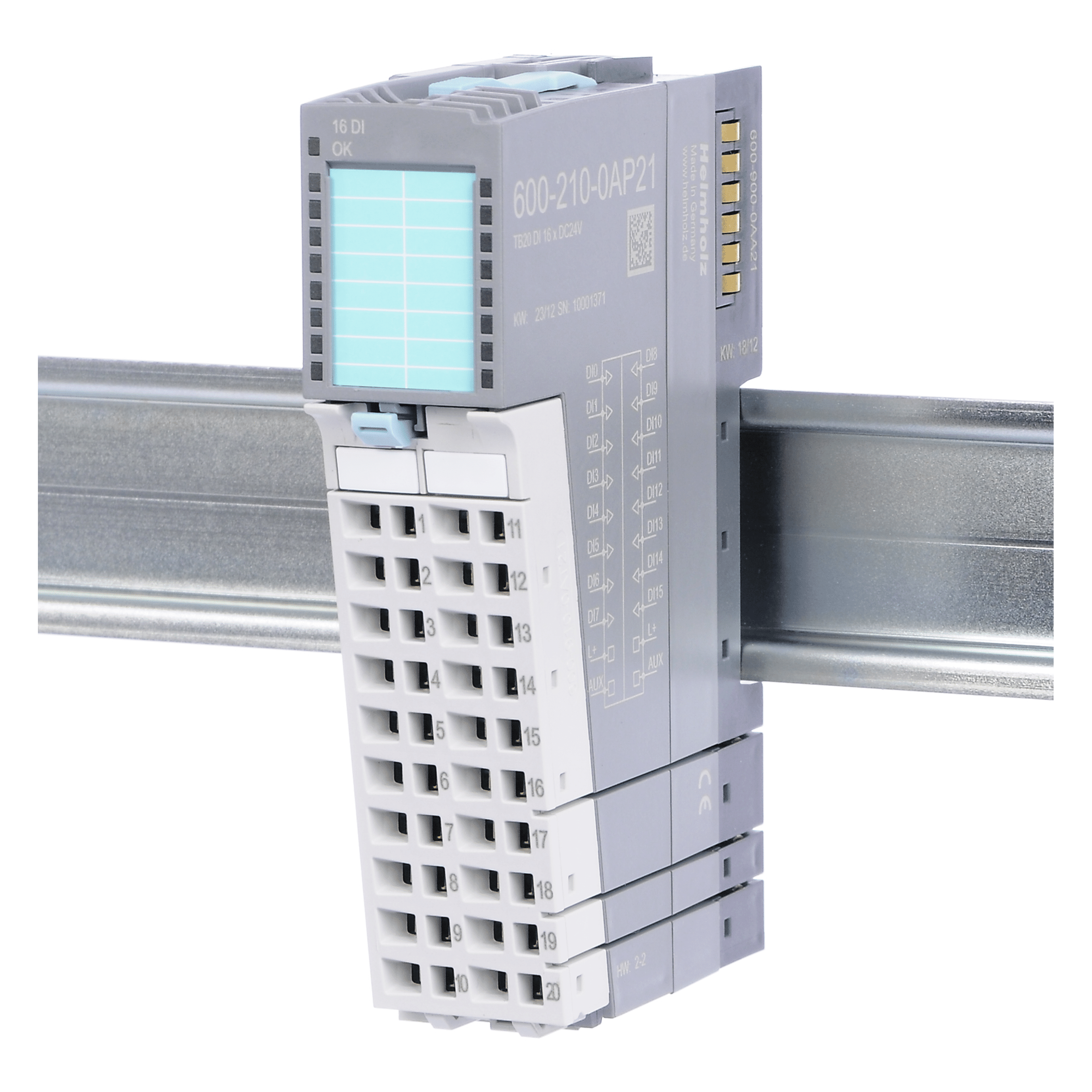

| DI 16x DC 24 V | 600-210-0AP21 |
