TB20 DO, DC 24 V, 2 A
Digital output modules for the modular fieldbus IO system TB20.
- 24 V DC output voltage
- 2 A output current per channel
- A blue LED indicates the module's operating status
- Green LEDs (one for each input) indicate the input status
- 2 or 4 outputs, electrically isolated from the backplane bus
| Supply voltage UP, US | ||
| Rated value | 24 V DC | |
| Ripple USS | max. 3.6 V | |
| Permissible range (with ripple) | 20 … 30 V | |
| Voltage for t < 10 ms | 50 V | |
| Output current | ||
| Rated value | 2 A | |
| Leakage current | Max. 0.5 mA | |
| Current draw | ||
| External | Max. 30 mA + load | |
| Internal | Max. 30 mA | |
| Power dissipation | Max. 1.1 W | |
| Output short-circuit protection | Electronic, for each individual channel | |
| Inductive cutoff voltage limit | -48 V | |
| Hot-swap capable | Yes |
Description |
Order number |
| DO 2x DC 24 V, 2 A | 600-220-0BB01 |

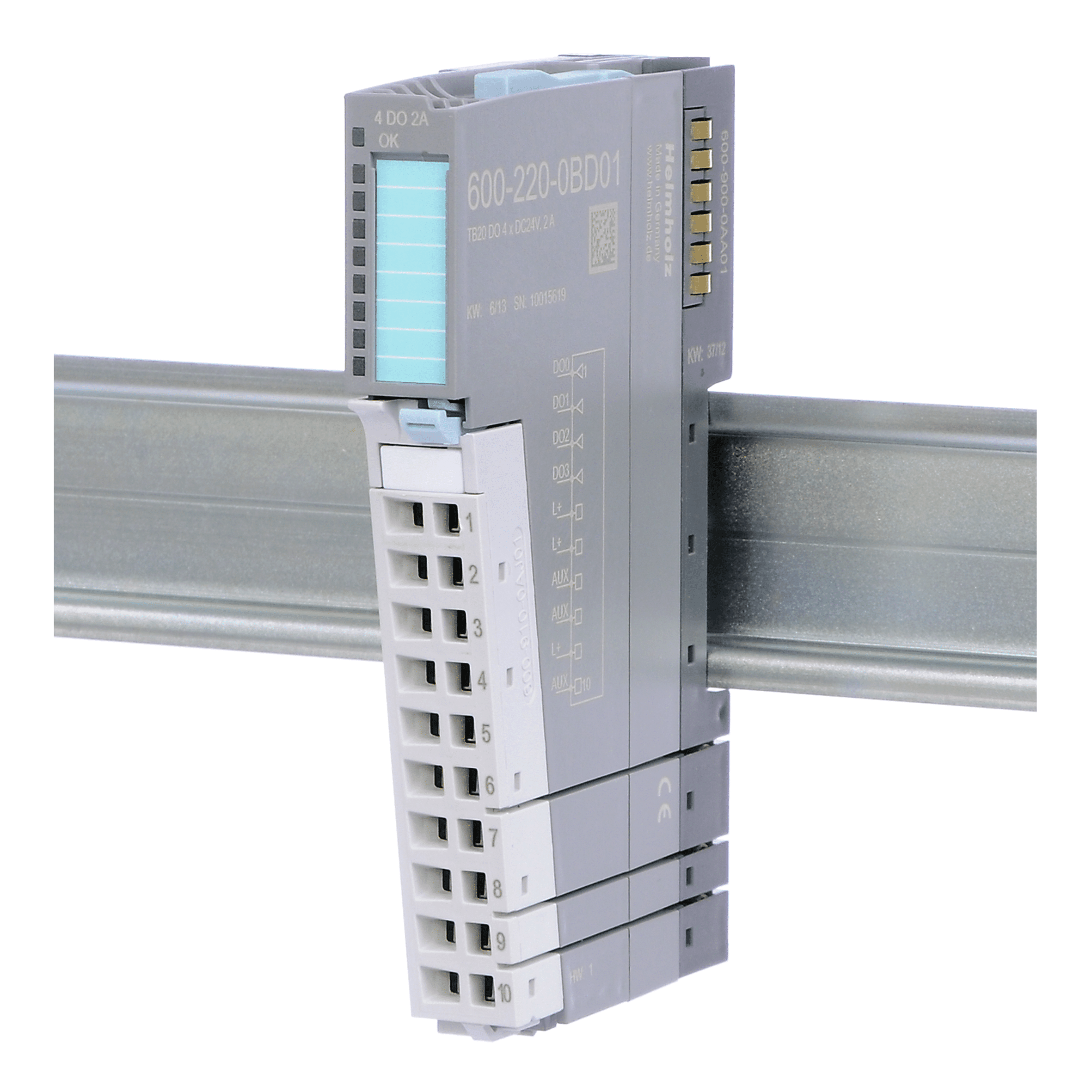

| DO 4x DC 24 V, 2 A | 600-220-0BD01 |
