TB20 DO, DC 24 V, 500 mA
Digital output modules for the modular fieldbus IO system TB20.
- 24 V DC output voltage
- 500 mA output current per channel
- A blue LED indicates the module's operating status
- Green LEDs (one for each input) indicate the input status
- 2, 4, 8 or 16 outputs, electrically isolated from the backplane bus
| Electrical isolation | ||
| from the backplane bus | Yes | |
| Between the channels | No | |
| Supply voltage UP, US | ||
| Rated value | 24 V DC | |
| Ripple USS | max. 3.6 V | |
| Permissible range (with ripple) | 20 … 30 V | |
| Voltage for t < 10 ms | 50 V | |
| Output current | ||
| Rated value | 500 mA | |
| Leakage current | Max. 0.5 mA | |
| Current draw | ||
| External | max. 80 mA + Load | |
| Internal | max. 47 mA | |
| Power dissipation | Max. 5 W | |
| Output short-circuit protection | Electronic, for each individual channel | |
| Inductive cutoff voltage limit | -48 V | |
| Hot-swap capable | Yes |
Description |
Order number |

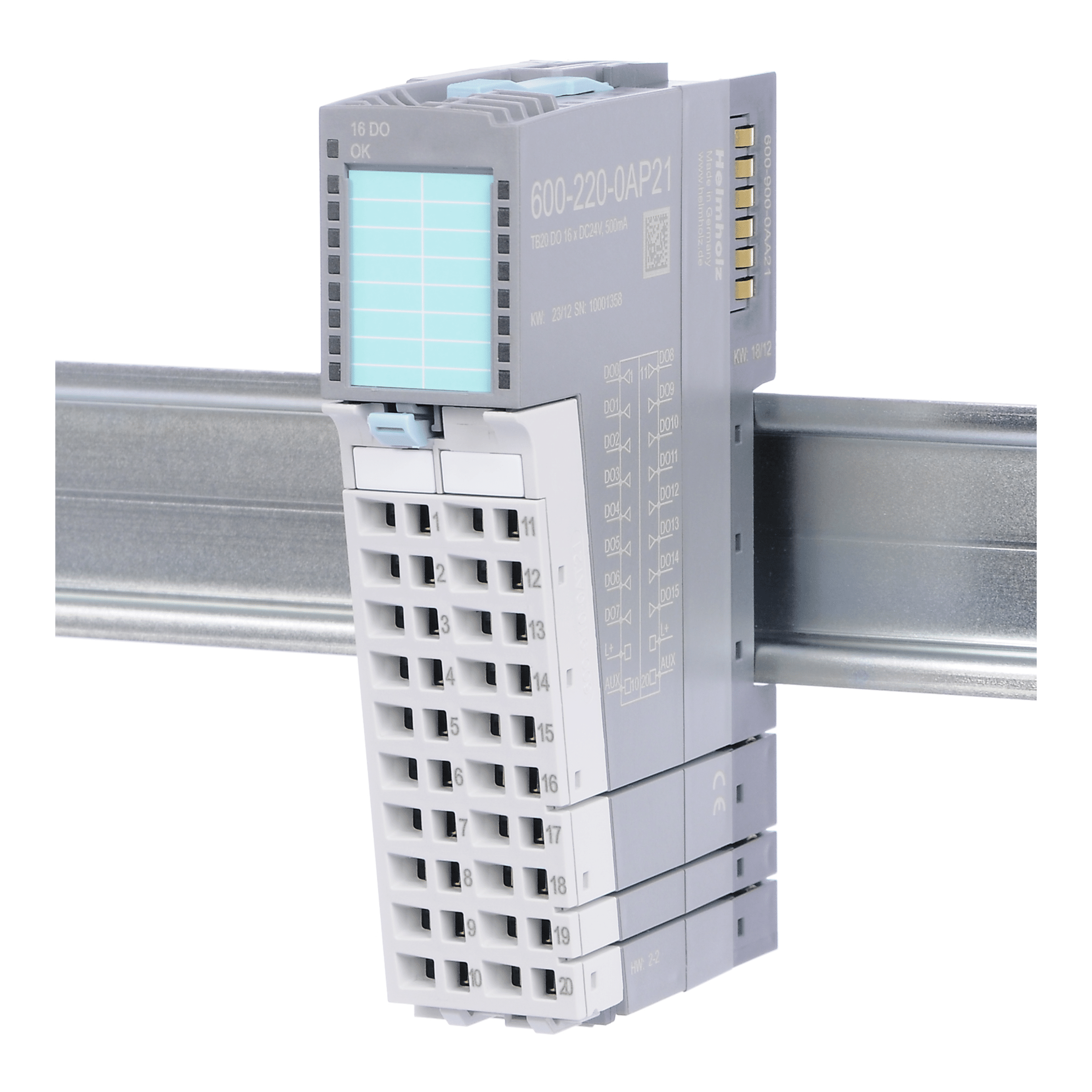

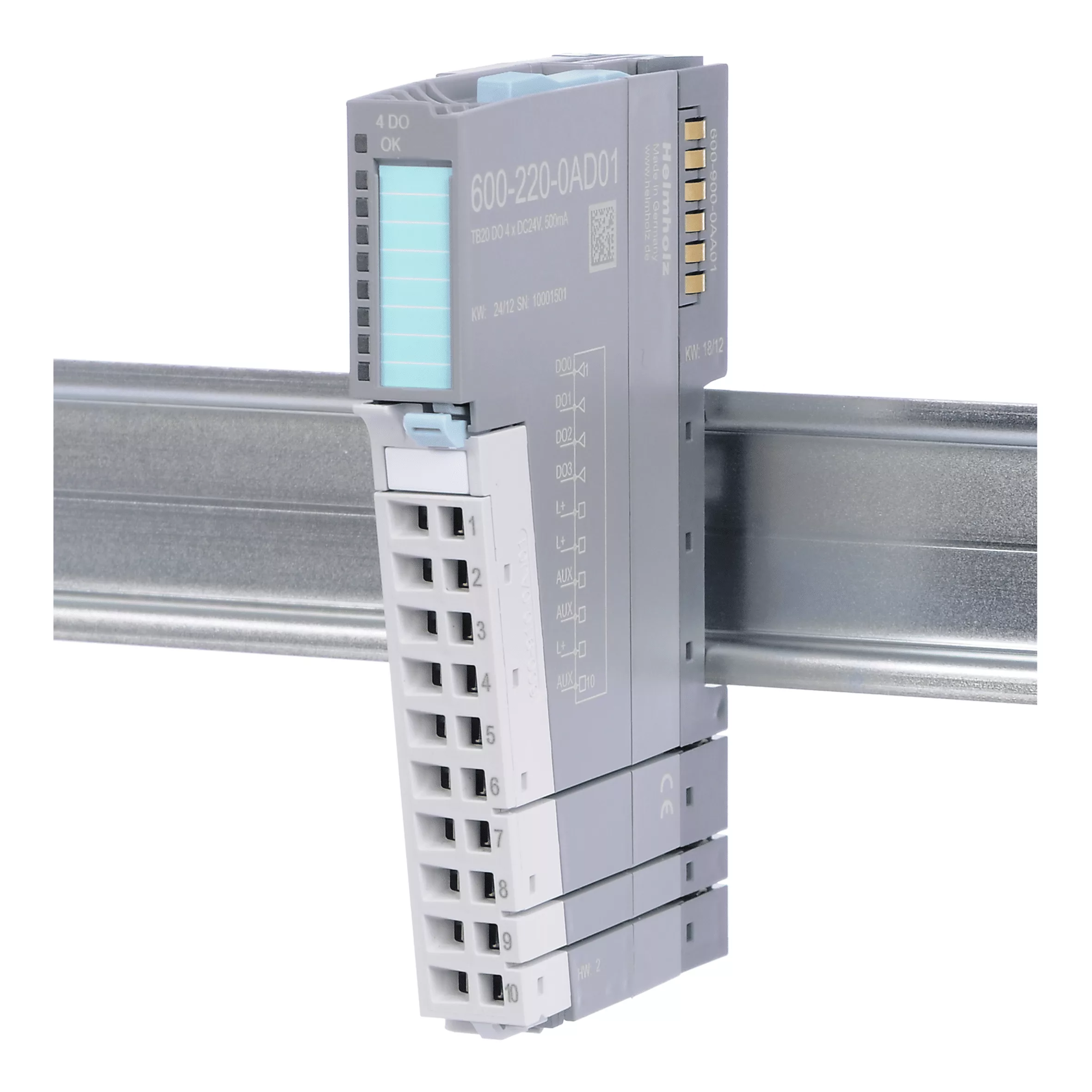

| DO 2x DC 24 V, 500 mA | 600-220-0AB01 |
| DO 4x DC 24 V, 500 mA | 600-220-0AD01 |
| DO 8x DC 24 V, 500 mA | 600-220-0AH01 |
| DO 16x DC 24 V, 500 mA | 600-220-0AP21 |
