TH LINK PROFIBUS

Plant Asset Management and monitoring for PROFIBUS Networks

Access to PROFIBUS networks for any FDT frame application, Emerson’s AMS and Softing’s TH SCOPE

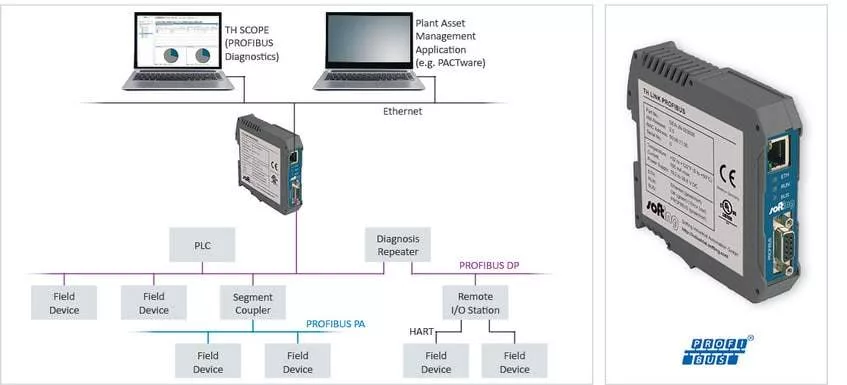

TH LINK PROFIBUS provides controller-independent access to PROFIBUS networks for plant operation and maintenance staff. The tool supports both network diagnostics applications and plant asset management applications. TH LINK PROFIBUS is easy to use and can be integrated without interfering with the operation of existing installations.

  • Controller-independent Access to PROFIBUS Network
  • Designed for Installation without Interference with Plant Operation
  • Passive listening to PROFIBUS DP protocol
  • Threshold monitoring for frame retries
  • Statistics for optimization of the network configuration
  • Easy detection of missing terminating resistors
FunctionalityNetwork detection and data collection (PROFIBUS DP)
Acyclic master (PROFIBUS DP-V1)
Alarm notification in case of fault
Basic monitoring, configuration
Integrated web server
Supported Plant Asset Management Applicationse.g.:
Endress+Hauser FieldCare
Emerson AMS Suite
Yokogawa Fieldmate
PACTware
PROFIBUS Transmission Ratemax. 12 MBit/s (AMS Device Manager, FDT)
max. 1.5 MBit/s (TH SCOPE)
Input Voltage24 VDC (19.2 VDC … 28.8 VDC)
Current consumptionmax. 190 mA

Omschrijving

Bestelnummer

TH LINK PROFIBUSGEA-JN-003006
