Discontinued

eCon 2000 Fast Ethernet Basic with optional Fiber Optic

Planning a replacement?

This product is no longer available. We have no direct successor; we gladly look at your application with you.

Prefer to call? +31 85 4010 710

Overview

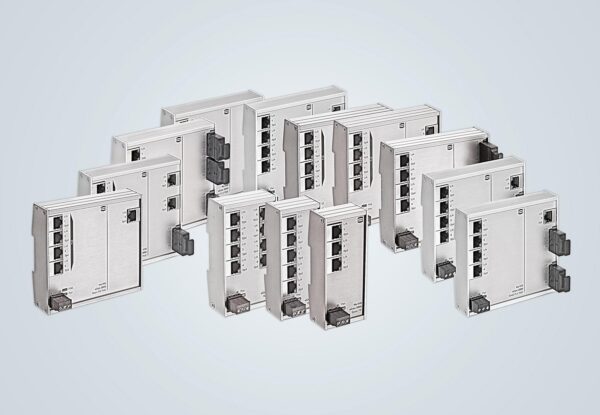

The eCon 2000 Fast Ethernet family of unmanaged Ethernet switches is equipped with up to 16 Fast Ethernet ports and allow for cost-efficient and quick expansion and/or reconstruction of network infrastructures.

Due to the extremely flat design, these switches can be accommodated in installations where space is restricted towards the cable connection at the front.

The selection includes various combinations of variants with RJ45 and fibre optic ports.

Automatic detection of the transmission rate (auto-negotiation) and of the wiring of the twisted pair data cable (autopolarity and auto-MDI(X)) allow for simple plug & play.

All variants are available with the temperature ranges ?Industrial? and ?Commercial?.

  • Temperature - 0 +55°C
  • Temperature -40 +70°C
  • Fast Ethernet Non-Blocking Switch architecture in accordance with IEEE 802.3
  • Wide range power supply 24/48 VDC
  • Surge protection and reverse polarity protection
  • Minimum energy consumption due to energy-effi cient Ethernet

Specifications

ports copper / termination10BASE­Te / 100BASE­TX EEE / RJ45 (twisted pair)
Nominal voltage24/48 V DC
Permissible voltage9 ... 60 V DC

Ordering

Every version with its price and availability. Prices exclude VAT.

eCon 2000 Fast Ethernet Basic with optional Fiber Optic versions
Order numberTemperature rangeRJ 45 portsFO PortsPriceAvailabilityAction
24020030000 -40°C - +70°C 3 No On request No longer available See successors for 24020030000
24020160010 0°C - +55°C 16 No On request No longer available See successors for 24020160010
24020061100 -40°C - +70°C 6 1 MM(SC) On request No longer available See successors for 24020061100
24020061110 0°C - +55°C 6 1 MM(SC) On request No longer available See successors for 24020061110
24020061200 -40°C - +70°C 6 1 SM(SC) On request No longer available See successors for 24020061200
24020061210 0°C - +55°C 6 1 SM(SC) On request No longer available See successors for 24020061210
24020062100 -40°C - +70°C 6 2 MM (SC) On request No longer available See successors for 24020062100
24020062110 0°C - +55°C 6 2 MM (SC) On request No longer available See successors for 24020062110
24020062200 -40°C - +70°C 6 2 SM (SC) On request No longer available See successors for 24020062200
24020062210 0°C - +55°C 6 2 SM (SC) On request No longer available See successors for 24020062210
24020030010 0°C - +55°C 3 No On request No longer available See successors for 24020030010
24020040000 -40°C - +70°C 4 No On request No longer available See successors for 24020040000
24020040010 0°C - +55°C 4 No On request No longer available See successors for 24020040010
24020050000 -40°C - +70°C 5 No On request No longer available See successors for 24020050000
24020050010 0°C - +55°C 5 No On request No longer available See successors for 24020050010
24020080000 Any Any Any On request No longer available See successors for 24020080000
24020080010 Any Any Any On request No longer available See successors for 24020080010
24020160000 Any Any Any On request No longer available See successors for 24020160000
