Communication module SPI - Real-Time Ethernet Slave
Price on request
excl. VAT
Please contact us for up-to-date price and delivery information.
These items are added to your cart automatically.
Overview

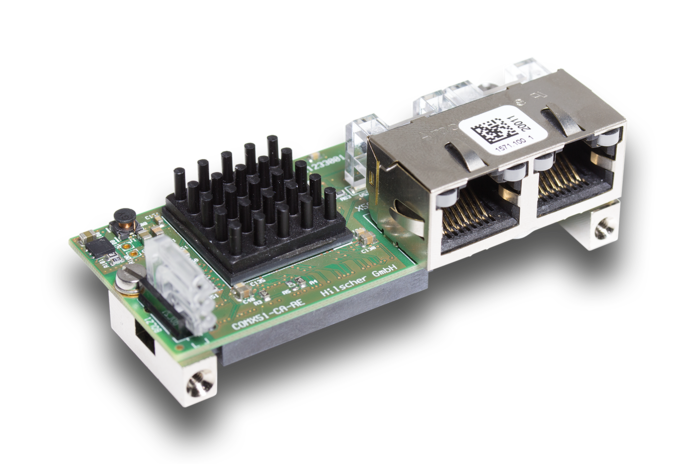

The comX communication module is designed to be integrated into automation devices to provide drives, robot controllers, PLCs, etc. with a network interface. Communication tasks are all executed autonomously in the module – irrespective of the processor of the target device.
Process data is exchanged via a Dual-Port-Memory per access by an 8-/16-bit bus interface or a fast 50 MHz SPI interface.
comX supports all leading Real-Time Ethernet protocols as Master or Slave and meets all network-specific requirements in just one single module. To support a line topology, the module is equipped with two Ethernet ports. The communication protocol can be changed simply and reliably by loading the appropriate firmware and a software license for masters.
Due to the Hilscher network controller netX, a 10-year delivery guarantee is granted.
- Universal Real-Time-Ethernet Slave interface with network connection to the mainboard
- One hardware for all Real-Time Ethernet protocols
- Usable immediately due to preloaded firmware
- Firmware update via integrated web server
- Host connection via dual-port memory or SPI
Specifications
| Product | Part number;1571.100 |
|---|---|
| Brief description | Communication Module Real-Time Ethernet |
| Communication controller | netX;netX 51 |
| Integrated Memory | RAM;8 MB SDRAM |
| FLASH | 4 MB serial Flash |
| Power supply and current | Supply voltage;+3.3 V ± 5 % DC |
| Typical/maximum current | 530 mA/580mA |
| Typical power consumption | 1,9 W |
| Power connector | via system bus connector X1 |
| System interface | Type;Parallel or serial dual-port memory interface |
| Connector | 50-pin SMT, female connector |
| Pin distance | 1.27 mm |
| Dual-port memory size | 16 KByte |
| Data width | 8/16 bit |
| Serial dual-port memory interface | SPI Slave, mode 3 |
| Baud rate | max. 50 MHz |
| Communication interface | Communication standard;Ethernet |
| Connector | 2 * RJ45 socket |
| Diagnostic interface | Type;UART or USB |
| Connector | Signal at host interface. Available only if integrated in host system. |
| Display | LED display;SYS System Status, green: RUN, yellow: RDY |
| COM0, COM1 Communication status, both green/red | |
| TX/RX0, TX/RX1, Ethernet activity status, yellow | |
| LINK0, LINK1, Ethernet link status, green | |
| Environment | Ambient temperature range for operation;0 °C ... +65 °C (Air flow during measurment: 0,5 m/s) |
| Ambient temperature range for storage | -10 °C … +70 °C |
| Humidity range | 10 % … 95 % relative humidity (non-condensing) |
| Device | Dimensions (L x W x H);70 mm x 30 mm x 21.5 mm |
| Weight | approx. 35 g ... 40 g |
| Mounting | using screwable metal bolts, according to comX Design Guide |
| Configuration | Configuration software;SYCON.net |
Ordering
Every version with its price and availability. Prices exclude VAT.
| Order number | flexible positioning of the network connector | Price | Availability | Action |
|---|---|---|---|---|
| 1571.100/PNS V3 | No | On request | Lead time on request | Ask for a quote 1571.100/PNS V3 |
| 1572.100/PNS V3 | Yes | On request | Lead time on request | Ask for a quote 1572.100/PNS V3 |
| Order number | Description | Action |
|---|---|---|
| 1571.100/PNS | Communication module SPI - Real-Time Ethernet Slave, COMX 51CA-RE/PNS V3 (V3) | Ask for a quote Communication module SPI - Real-Time Ethernet Slave, COMX 51CA-RE/PNS V3 |
| 1572.100/PNS | Communication module SPI - Real-Time Ethernet Slave (Allows a flexible positioning of the network connector), COMX 51CN-RE/PNS V3 (V3) | Ask for a quote Communication module SPI - Real-Time Ethernet Slave (Allows a flexible positioning of the network connector), COMX 51CN-RE/PNS V3 |
