DIL-32 communication IC – CANopen Slave
DIL-32 communication IC – CANopen Slave
Simple field devices such as barcode readers, identification systems, valve manifolds or I/O blocks require a connection to fieldbus or Real-Time Ethernet systems.

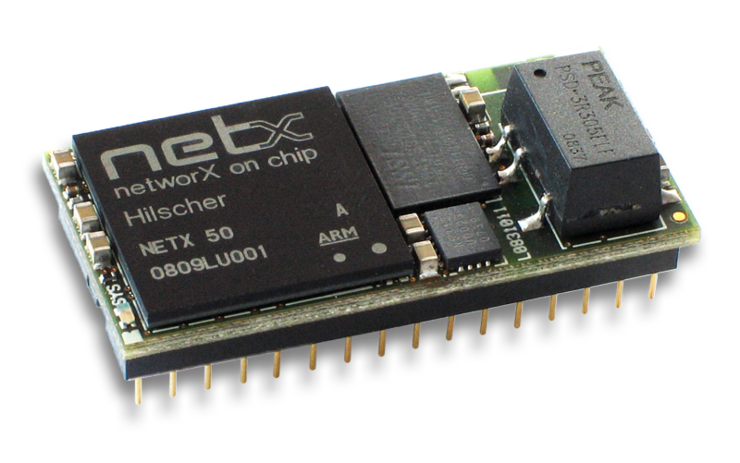

The netIC is a complete ‘Single Chip Module’ in the compact dimensions of a Dual-In-Line (DIL) 32 pin plug-in module. It is based on the network controller netX and contains all components of a fieldbus or Real-Time Ethernet interface with an integrated 2-port switch and hub. With the netX technology the whole spectrum of relevant fieldbus and Real-Time Ethernet systems is covered. By exchanging the firmware, one single netIC can be used for multiple communication systems.
Conventional shifting registers can be controlled via a synchronous serial interface requiring no additional processor for a simple I/O-device.
- Compact DIL-32 communication module for cost-efficient field devices
- Host connection with Modbus RTU via SPI or UART
- CANopen Slave interface including bus logic
- Direct I/O-data connection via an external shift register
- One design for all networks due to uniform interfaces
Vraag direct een offerte aan!
DIL-32 communication IC – CANopen Slave
Neem contact op voor de actuele levertijden.
| Product | Part number | 1541.540 |
| Communication controller | netX | netX 50 |
Omschrijving |
Bestelnummer |
| DIL-32 communication IC - PROFIBUS DP Slave, NIC 50-COS, | 1541.540/COS |
| Hilscher embedded solution brochure | Versie: 2013-10 |
| netIC datasheet | Versie: V10-2022 |
| netIC User manual and Design Guide | Versie: V37 |
